Solar Pump Inverter for Water Pump Solar Inverter Charge Controller
1.5KW

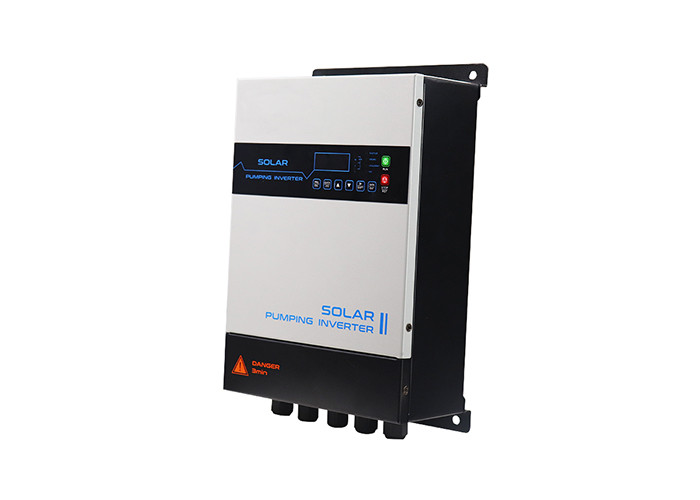

JET-SR PU Series Solar Pump Inverter
JET-SR PU Series Solar Pump Inverter, it covers a wide power range
from 0.4KW to 80KW, with a wide range of pumps for submersible,
surface applications.
Fully automatic system using variable speed drive compatible with
AC, 1-phase /3-phase, submersible and surface mount pumps, and high
efficiency PMSM Pumps. The system is composed of a PV generator, a
pump and a solar pump drive. Based on the design philosophy that it
is more efficient to store water rather than electricity, there is
no energy storing device such as storage battery in the system. The
system is prepared to be combined with an elevated water storage,
e.g. water tower or an uphill tank installation.
Features
1, Support 220-240V/380-440V, 1PH/3PH water pumps.
2, Easy to use, no setting, automatic start-up.
3, Multi-protection include overload, over voltage, short circuit,
over temperature, over current, under voltage, etc.
4, Advanced MPPT algorithm to ensure solar power. Max. power point
tracking efficient could reach 99%.
5, ModBus communication function.
6, Support independent or complementary use of PV and utility
power.
7, External water level signal control.
8, Pure sine wave
9, Good heat dissipation system can prolong service life and
improve machine stability.
10, Smart battery charger design for optimized battery performance.
11, Cooling fan is dust-proof, noise reduction.
Applications
Specification
| Model | L11 | L13 | L33 | H33 |
| AC Input Voltage | 187-264V (1PH) | 187-264V (3PH) | 323-484V (3PH) |
| Max. DC Input Voltage | 440V | 440V | 440V | 800V |
| Startup Voltage | 200V | 200V | 200V | 300V |
| Lowest Working Voltage | 150V | 150V | 150V | 250V |
| Recommended DC Input Voltage Range | 200-400V | 200-400V | 200-400V | 300-750 |
| Recommended MPPT Voltage | 330V | 330V | 330V | 550V |
| Rated Output Voltage | 220V (1PH) | 220V (3PH) | 220V (3PH) | 380V (3PH) |
| Output Frequency Range | 0-400Hz |
| MPPT Efficiency | 99% |
| Environment Temperature | -10~+50℃, if above 40℃, derate 2% for every additional 1℃ |
| Altitude | Below 1000m, if above 1000m, derate 1% for every additional 100m. |
| Cooling Manner | Fan Cooling |
| Series | Model | Rated Output Power (KW) | Rated Input Current (A) | Rated Output Current (A) |
L11 (0.4-2.2KW) | PU 0K4-L11 | 0.4 | 6.5 | 4.2 |
| PU 0K7-L11 | 0.75 | 9.3 | 7.2 |
| PU 1K5-L11 | 1.5 | 15.7 | 10.2 |
| PU 2K2-L11 | 2.2 | 24 | 14 |
L13 (0.4-2.2KW) | PU 0K4-L13 | 0.4 | 6.5 | 2.5 |
| PU 0K7-L13 | 0.75 | 9.3 | 4.2 |
| PU 1K5-L13 | 1.5 | 15.7 | 7.5 |
| PU 2K2-L13 | 2.2 | 24 | 10 |
L33 (4-7.5KW) | PU 004-L33 | 4 | 17 | 16 |
| PU 5K5-L33 | 5.5 | 25 | 20 |
| PU 7K5-L33 | 7.5 | 33 | 30 |
H33 (0.7-37KW) | PU 0K7-H33 | 0.75 | 3.4 | 2.5 |
| PU 1K5-H33 | 1.5 | 5.0 | 4.2 |
| PU 2K2-H33 | 2.2 | 5.8 | 5.5 |
| PU 004-H33 | 4 | 13.5 | 9.5 |
| PU 5K5-H33 | 5.5 | 19.5 | 14 |
| PU 7K5-H33 | 7.5 | 25 | 18.5 |
| PU 011-H33 | 11 | 32 | 25 |
| PU 015-H33 | 15 | 40 | 32 |
| PU 018-H33 | 18.5 | 47 | 38 |
| PU 022-H33 | 22 | 51 | 45 |
| PU 030-H33 | 30 | 70 | 60 |
| PU 037-H33 | 37 | 80 | 75 |
Service
1, Support imprint your logo on products and let your logo shine
anywhere
2, OEM/ODM orders available if quantity appropriate
3, We own the best after-sale service. If any problem happens, our
team will do our best to solve it.
4, We can ship products by sea, by air and by Courier
Packaging and Delivery
1, Aluminum box and carton box, careful and tight package, make
sure the package is intact during delivery.
2, The package will be shipped by DHL/FedEx/TNT/EMS/UPS/Special
line, which can be specified in the order.
3, The shipping time is different, it depends on the distance
between us, and the quantity ordered.
