10-40KVA Online Uninterrupted Power Supply UPS 3/3 Phase Industrial
Ups Power Supply

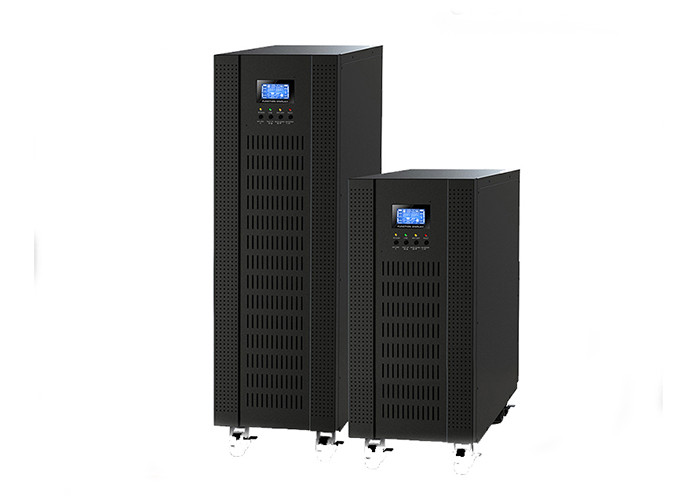

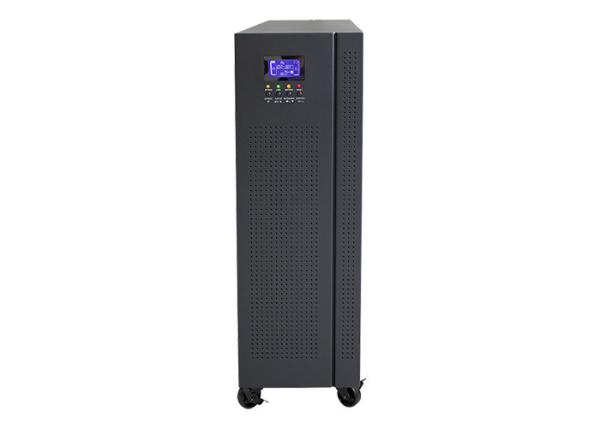

JET-HT33 10-40KVA Online High-Frequency UPS
10-40KVA
3/3 Phase
Power Factor 0.8
JET-HT33 10-40KVA Online High-Frequency UPS, is 3-phase in and
3-phase out. It is LCD + LED, real-time monitoring display and
warning. Transfer time is 0ms at AC to DC or inverter bypass. It is
a perfect power solution for data center, industrial automatic,
server room, broadcasting and television, finance, government
department, etc.
Key Features
1, High-frequency online dual conversion.
2, DSP (digital signal processors) ensures the better quality and
high performance.
3, N+X parallel redundancy.
4, Output power factor is 0.8.
5, Single phase grid power input range is wild, 110~300VAC.
6, Battery quantity can be adjusted in 16-20 cells.
7, Charging current can be adjusted in 0.5-6A.
8, Emergency power off (EPO), UPS can be shut off instantly in any
sudden emergency.
9, ECO mode can do energy saving.
10, Power factor correction is available in 3-phase input.
11, 3 steps extendable charging mode can optimize battery
performance.
12, Pure sinewave output is more stable and reliable.
Specifications
| Model | X10KS | X20KS | X30KS | X40KS |
| Online type | 3-phase in/ 3-phase out |
| Capacity | 10KVA/8KW | 20KVA/16KW | 30KVA/24KW | 40KVA/32KW |
| Input |
| Voltage | 3x400VAC(3Ph+N) |
| Voltage range | 190-520VAC (3-phase) at 50% load;305-478VAC (3-phase) at 100% load |
| Frequency | 46~54Hz or 56~64Hz |
| Power factor | ≥ 0.99@100%Load |
| Out put |
| Voltage | 3 phase 380VAC(3Ph+N) |
| Voltage Range (Battery Mode) | ±1% |
| Frequency Range (Synchronize Correction Range) | 46~54Hz or 56~64Hz |
| Frequency Range (Battery Mode) | 50Hz±0.1Hz or 60Hz±0.1Hz |
| Current Crest Ratio | 3:1(max) |
| Harmonic Distortion | ≤ 2% THD (Linear Load); ≦5% THD (Non-Linear Load) |
| Transfer Time | AC to DC | 0 ms |
| Invert to Bypass | 0 ms |
| Wave Form (Battery Mode) | Pure Sine Wave |
| Efficiency |
| Grid mode | 89% | 89% | 89% | 90% |
| Battery mode | 86% | 88% | 87% | 89% |
| Battery |
| Standard | battery | 12V/7Ah |
| Qty | 20 | 20pcsx2 | 20pcsx3 |
| Charging time | 9hours up to 90% |
| Max Charging Current | 1A | 2A | 2A | 4A |
| Charging Voltage | 273VDC±1% |
| Long terms | battery | 20pcs (16-20pcs optional) |
| Qty |
| Charging current max | 4A | 4A | 4A | 12A |
| Charging voltage | 273VDC±1% |
| Display |
| LCD or LED | Load Size, Battery Capacity, Grid Mode, Battery Mode, Bypass Mode,
Error Indicator |
| Warning |
| Battery Mode | Once every 4secs |
| Low Battery | Once every second |
| Overload | Once every 0.5sec |
| Error | Long Beep |
| Dimension & weight |
| standard | Dimension D x W xH(MM) | 815x250x826 | 815x250x826 | 815x300x1000 | 815x300x1000 |
| Weight kgs) | 109 | 164 | 234 | 240 |
| Long terms | Dimension D x W x H (mm) | 592x250x826 | 592x250x826 | 815x250x826 | 815x250x826 |
| Weight (kgs) | 38 | 40 | 64 | 71 |
| Environment |
| Humidity | 0-95%RH@0-40°C(N.C) |
| Noise | < 60dB@1m | < 65dB@1m |
| Communication and Control |
| RS-232/USB | Windows2000/2003/XP/Vista/2008, Windows7/8, Linux, Unix, MAC |
| Optional SNMP | Support SNMP & Networking Controller |
Models:
H: High-frequency
T: Tower type
R: Rack type
L: Long run machine
31: 3-phase in 1-phase out
33: 3-phase in 3-phase out
