HT31 15KL Uninterrupted UPS Power Supply Long Run Machine Current
4A

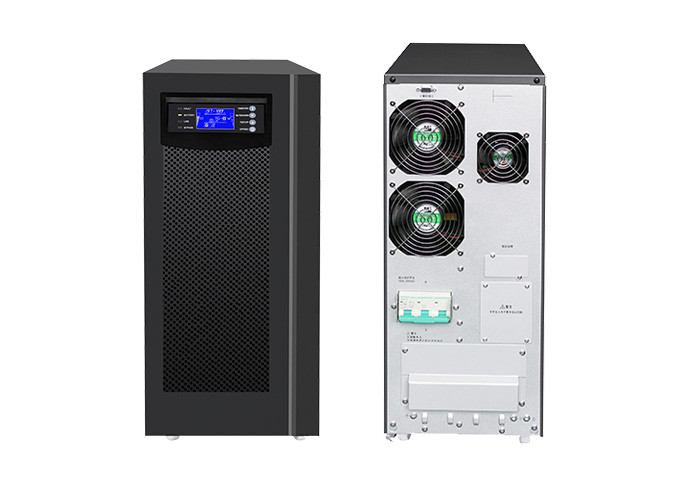

JET-HT31 15KL Online High-Frequency UPS
15KVA
3/1 Phase
Power Factor 0.8
JET-HT31 15KL Online High-Frequency UPS, is a tower-mounted, online
double conversion power system that delivers continuous,
high-efficiency AC power, at online mode for 15KVA. It’s really a
perfect power protection solution for small power scenarios.
Application Scenarios
Small and medium enterprise
Small data center
Server room
Internetwork laboratory
Networking
Communication devices
Office terminals
Workstation
Key Features
1, Wide input voltage range to minimize battery use.
2, Pre-alarm helps customers to maintain before failure happened.
3, Full protection include overload, over current, over discharge,
over charger, short circuit, etc.
4, High-frequency online dual conversion.
5, The output power factor is 0.8.
6, LCD screen supports real time monitoring and operating
conveniently.
7, Advanced DSP ensures the better reliable and high performance.
8, Pure sinewave output does not destroy devices.
9, Long run machine current is 4A, external battery is easy to use.
HT31 15KL Specifications
| Model | HT31 15KL |
| Nominal Capacity | 15KVA/12KW |
| Nominal | Voltage | 380VAC |
| AC Input | Nominal Frequency | 50Hz |
| Voltage Range | 305~478VAC |
| Frequency Range | 45~55Hz ±0.5Hz |
| Bypass Voltage | 190-520VAC |
| Battery Input | Battery Pack | 192VDC (Optional up to 240V) |
| Batteries Capacity &Qty | 12VDC x 16 (Optional up to 20 sets) |
| Charging Current | Long run machine current 4A |
| AC Output | Voltage | 220VAC ±1% (Invert Output) |
| Frequency | 46~54Hz (Normal AC Input) 50Hz ±1% (Abnormal AC Input) |
| Wave Form | THD<3% (Linear Load) Sine Wave, THD<8% (Non-Linear Load) |
| Power Factor | 0.8 |
| Overload Cap. | 105~125% Bypass after 1mins |
| Communication & Monitoring Function | RS232, dry contact |
| Tower Type | Weight (kgs) | 25.5 |
| Dimension (W x H x D) (mm) | 248×620×500 |
| Rack Type | Weight (kgs) | 42 |
| Dimension (W x H x D) (mm) | 438×263×780 |
Models:
H: High-frequency
T: Tower type
R: Rack type
L: Long run machine
31: 3-phase in 1-phase out
