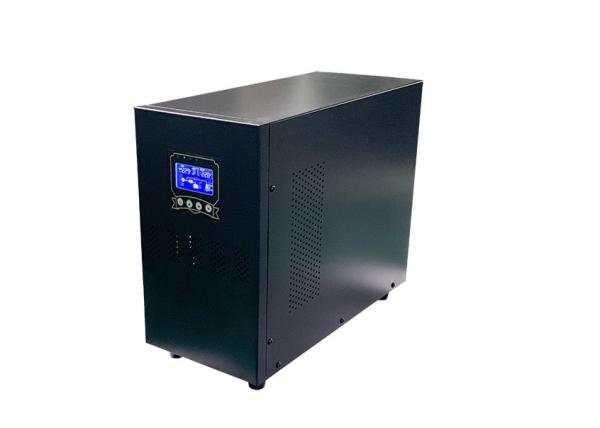

YJ SERIES PORTABLE SOLAR GENERATOR KIT
YJ Series Potable solar power generator, it’s designed for whom
wish to take the Green energy or reduce the GRID cost, thanks to
the solar panels, it continuous provision free clean solar energy.
It meets the electricity demand of the most appliances, such as
mobile phone, TV, refrigerator, tablet computer, LED lamp, laptop,
water pump and other home electronics application etc. It usually
be used in the following fields: home, small office and widespread
power shortage areas.
Key Features
♦ pure sine wave AC output
♦ LCD display
♦ high quality and capacity optional batteries
♦ high performance, no pollution, green environmental protection
♦ More than 1000 times charging and discharging cycle*
♦ Support the solar panels charge
♦ Low noise, almost 50dB in 1meter.
♦ real-time display parameters such as voltage, current, power,
battery, and working mode
♦ automatic computing power equipment, accurately show the rest of
the time
♦ overcharge, discharge, overload, overheating and short circuit
protection function
♦ LifePo4 type up to 2000 cycles
(Key words: UPS,backup power bank,power generator,Solar power
station)
Specifications
| Model | YJ300 | YJ600 | YJ600+ | YJ1000 | YJ1000+ |
| Rated power | 300W | 600w | 600w | 1000w | 1000w |
| AC Input voltage | (165-275)VAC |
| AC Input Frequency | 50Hz ±5% |
| AC Output voltage | AC220V/230V±5%(BATTERY MODE) |
| AC Output Frequency | 50/60HZ±0.2%(BATTERY MODE) |
| Output waveform | Pure sine wave |
| Efficiency | ＞85% |
| Transfer time | 4-6ms |
| Battery capacity | 12V38ah Lead-acid | 12v38ah Lead-acid | 12V40AH LiFePo4 | 12v65ah Lead-acid | 12V65AH LiFePo4 |
| AC Charge time | 4H | 6H | 5H | 6H | 6H |
| Max AC Charge current | 0-40A(Optional) |
| Solar input voltage | PWM (12V TO 25V, 24V TO 50V, 48V TO 80V) |
| Solar charge current | 40A |
| Solar panel | 100W | 150w | 100W*2 | 150W*2 | 150W*2 |
| Solar panel price | | | | | |
| Solar charge time | 5h | 6h | 5H | 6H | 5H |
| Distortion rate | <3% (full load)Linear load |
| <6% (full load)Non-Linear load |
| Protection | Over voltage, over term, over load, short circuit, battery voltage
high & low, AC input voltage high & low, automatic re-cover |
| Load peak ratio | 3:1 (Max) |
| Overload capacity | 110-130%,turn off after 10 secs, over 130% maintain 0.3 secs and
then shut down |
| Operation term | -25~45°C |
| Humidity | 5%~90%( non-condensation) |
| Altitude | ≤ 4500m |
| Cooling | Air cooling(inner term over 45°C) when machine temperature is up to 45℃, fan works; when it’s lower
than 45℃, fan stop automatically. |
| MTBF | ≥50000H |
| Dimension | L430*W195*H360mm | L430*W195*H360mm | L430*W195*H360mm | L430*W195*H360mm | L430*W195*H360mm |
| Package dimension | L470*W280*H420mm | L470*W280*H420mm | L470*W280*H420mm | L470*W280*H420mm | L470*W280*H420mm |
| Net weight | 17kg | 25kg | 10kg | 26kg | 12kg |
| Gross weight | 19kg | 28kg | 12kg | 29kg | 14kg |

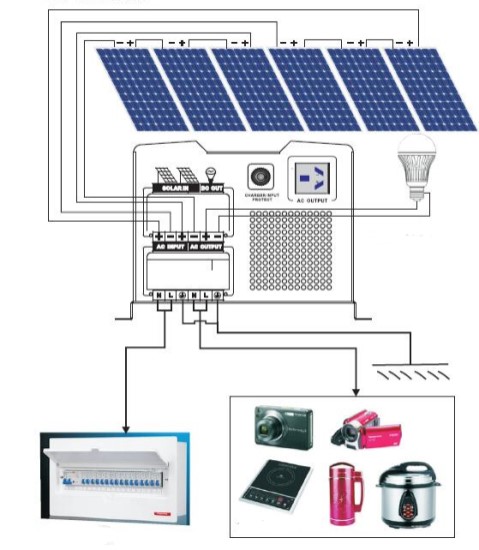

Solar wiring diagram
Service
1, Support imprint your logo on products and let your logo shine
anywhere
2, We own the best after-sale service. If any problem happens, our
team will do our best to solve it.
3, Aluminum box and carton box, careful and tight package, make
sure the package is intact during delivery.
4, The package will be shipped by DHL/FedEx/TNT/EMS/UPS/Special
line, which can be specified in the order.
5, The shipping time is different, it depends on the distance
between us, and the quantity ordered.
